Setting up MinIO AIStore on QBO

minio.svg

Deploying MinIO AIStore with QBO Container Engine (QCE)

MinIO AIStore is an S3-compatible object store optimized for AI workloads — enabling high-speed access to training data, model checkpoints, logs, and inference outputs.

In this guide, we deploy AIStore on an instance provisioned by the QBO Container Engine (QCE). QCE runs directly on bare metal and leverages Docker-in-Docker (DinD) to manage isolated workloads — each with direct access to NVIDIA GPUs via the NVIDIA Container Toolkit.

Why use MinIO AIStore on QCE?

  • GPU-native by default: Every instance has direct access to attached NVIDIA GPUs
  • Metal disk performance: Local NVMe or SSD storage provides high-throughput access to data
  • Simple and fast: Deploy object storage in seconds with secure TLS and DNS configured automatically
  • Optimized for AI: Store models, datasets, and artifacts efficiently with S3-compatible APIs
  • Portable infrastructure: Deployable on-prem or across any QBO-powered environment

This setup delivers a fast, production-grade object store for AI/ML workloads — with full control over data, performance, and deployment.


Prerequisites

  • A running QBO instance named aistor_object_store
  • QBO CLI configured with access credentials
  • Your QBO host issuing ACME certificates

Step-by-Step Setup

1. Check QBO version and create the object store instance

# Get the QBO CLI/API version
qbo version | jq .version[]?

# Create an instance named aistor_object_store from the mc2 image
qbo add instance aistor_object_store -i registry.cloud.qbo.io/qbo/src/cloud/instance:mc2 | jq

# Retrieve details of the instance you just created
qbo get instance aistor_object_store | jq -e '.instances[]?'

2. Get the SSH configuration

qbo get instance aistor_object_store -k | jq -r '.output[]?.sshconfig | select( . != null)' > $HOME/.qbo/aistor_object_store.crt
chmod 600 $HOME/.qbo/aistor_object_store.crt

3. Retrieve instance IP address

ADDR=$(qbo get ipvs aistor_object_store | jq -r '.ipvs[]? | select(.node | contains("insta")) | .vip' | head -1)

4. Retrieve ACME TLS certificates from QBO

KEY=$(qbo get acme -A 2>/dev/null | jq -r .acmes[]?.privkey | openssl pkcs8 -topk8 -inform PEM -outform PEM -nocrypt | base64 -w 0)
CRT=$(qbo get acme -A 2>/dev/null | jq -r .acmes[]?.fullchain | base64 -w 0)

5. Upload TLS certs to remote instance

ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'mkdir -p ~/.minio/certs'
echo $KEY | base64 -d | ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'cat > ~/.minio/certs/private.key'
echo $CRT | base64 -d | ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'cat > ~/.minio/certs/public.crt'
ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'chmod 600 ~/.minio/certs/private.key && chmod 644 ~/.minio/certs/public.crt'

6. Download MinIO binary and install license

ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'curl -sSL https://dl.min.io/aistor/minio/release/linux-amd64/minio -o ~/minio && chmod +x ~/minio'
# License can be retrieved from: https://min.io/download?view=aistor
scp -O -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt ./minio.license qbo@$ADDR:minio.license

7. Create and upload the systemd service

Note: The instance ID (UUID) is used as the MinIO qbo password

UUID=$(qbo get instance aistor_object_store | jq -r '.instances[]?.id')
cat > minio.service <<EOF
[Unit]
Description=MinIO Server
After=network.target

[Service]
User=qbo
Environment=MINIO_ROOT_USER=qbo
Environment=MINIO_ROOT_PASSWORD=$UUID
Environment=MINIO_LICENSE=/home/qbo/minio.license
ExecStart=/home/qbo/minio server /home/qbo/data --console-address :9001
Restart=always

[Install]
WantedBy=multi-user.target
EOF

scp -O -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt ./minio.service qbo@$ADDR:/tmp/minio.service
ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'sudo mv /tmp/minio.service /etc/systemd/system/minio.service && sudo chown root:root /etc/systemd/system/minio.service'
ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'sudo systemctl daemon-reload && sudo systemctl enable --now minio && sudo systemctl restart minio'

8. Verify MinIO is running

# Check systemd journal logs for MinIO
ssh -o StrictHostKeyChecking=no -i $HOME/.qbo/aistor_object_store.crt qbo@$ADDR 'sudo journalctl -t minio -n 20 --no-pager'

# Run health check — should return 200 on success
code=$(curl -s -o /dev/null -w '%{http_code}' https://aistor.$HOSTNAME:9000/minio/health/ready)

if [ "$code" = "200" ]; then
echo -e "\033[32mMinIO is healthy: $code\033[0m"
else
echo -e "\033[31mMinIO health check failed: $code\033[0m"
fi

9. Add to /etc/hosts for local DNS

HOSTNAME=$(hostname | sed 's/^[^.]*\.//')
echo "$ADDR aistor.$HOSTNAME" | sudo tee -a /etc/hosts

10. Install mc (MinIO Client) if needed

ARCH=$(uname -m)
[ "$ARCH" = "x86_64" ] && ARCH="amd64"
curl -sSL -o mc https://dl.min.io/client/mc/release/linux-$ARCH/mc
mkdir -p ~/.local/bin
sudo install -m 555 mc ~/.local/bin/mc

11. Configure mc and test upload

mc alias set myminio https://aistor.$HOSTNAME:9000 qbo $UUID
mc admin info myminio
mc mb myminio/mybucket
echo "Hello MinIO!" > testfile.txt
mc cp testfile.txt myminio/mybucket/
mc ls myminio/mybucket/

Access Credentials

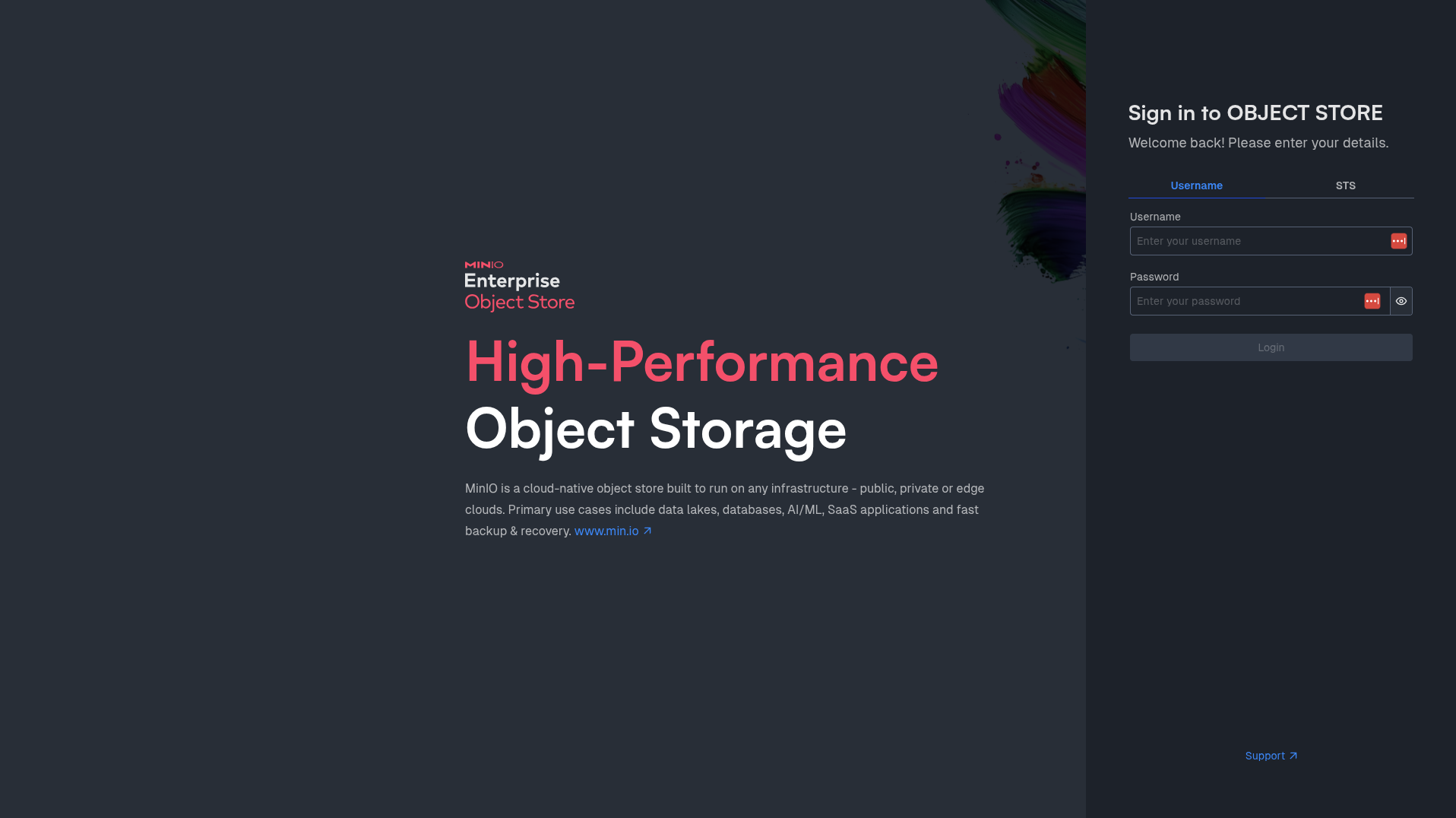

Screenshot From 2025-06-23 23-56-57.png
mc ls myminio/mybucket/
[2025-06-24 15:20:22 UTC] 13B STANDARD testfile.txt
USER qbo
PASSWORD 0acc380e-6d10-49c7-945d-9f8f35549cd8
S3 https://aistor.cloud.levitas.dev:9000
URL https://aistor.cloud.levitas.dev:9001
